Cabinet Door Moulding 3" - 72

Cabinet Door Moulding 3" - 72

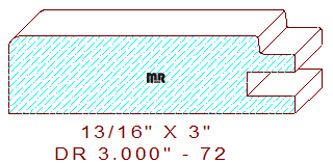

This cabinet door rail moulding 3" - 72 measures 3.000" wide by .812" thickness. The profile is composed of a simple 3/8" wide by 3/16" deep rabbet with a small .040" radius on the edges, and the outer edge retains a 1/8" radius. There is a .015" built into the knife design for sanding to eliminate flattening of the outer edge radiuses during the finishing process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
