Cabinet Door Moulding 3" - 78

Cabinet Door Moulding 3" - 78

Cabinet Door Moulding 3" - 78

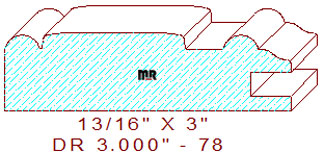

This distinctive cabinet door rail molding 3" - 78 measures 3.000" width by .812" thickness, permitting the use of four quarter lumber for milling on an industrial-grade molder. The exquisite pattern contains a 3/8" full half-circle on the top left, connected to a 1-1/2" full raised fillet with a 13/32" dado for inserting a piece of 3/8" rope molding in the center. The plow joins to an additional 3/8" half round bead and a tiny ogee with a 3/64" eased edge on the right side of the design. There is a slight .025" taper built into the top of the design; this is for sanding the profile after assembly to ensure the beads don't get flattened. We offer the matching drawer front of this pattern for your review and consideration, door rail 1.875"- 4.

Utilize our beautiful patterns to create a stylish molding catalog for your millwork company, or, simply connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you remodel that beautiful house in the transformation into an elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 3.000" / Depth of Cut = .500" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
