Cabinet Door Moulding 3" - 8

Cabinet Door Moulding 3" - 8

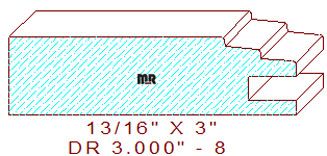

This Cabinet Door Moulding 3" - 8 measures 3.000" wide by .812" thickness. The profile is comprised of a 2-1/4" wide horizontal fillet that transitions into two 3/8" wide by 3/32" deep beveled steps with .047" eased edges.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
