Cabinet Door Moulding 3" - 80

Cabinet Door Moulding 3" - 80

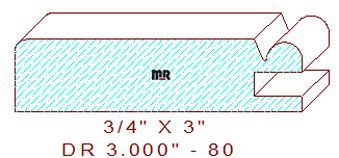

This standard door rail molding measures 3" wide by 3/4" thickness, the profile measures 1/2" wide, and is composed of a 3/8" wide recessed bead (.031") to allow for sanding and a 1/8" wide chamfer. The opposite side retains a 1/8" radius edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
