Cabinet Door Moulding 3" - 83

Cabinet Door Moulding 3" - 83

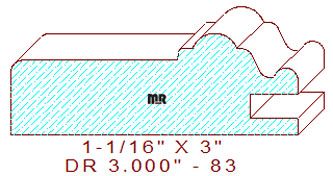

This Mitered Door Rail Moulding 3" - 83 measures 3.000" wide by 1.062" thickness. The profile is composed of a1/8" radius edge fillet at 3/4" thickness with an attached stepped fillet, half-round bead, and cyma reversa connected to another half round bead on the right side of the detail above the dado for the panel.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
