Cabinet Door Moulding 3" - 86

Cabinet Door Moulding 3" - 86

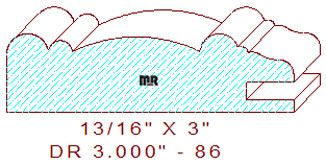

This Mitred Door Rail Moulding 3" - 86 measures 3.000" wide by .812" thickness. The profile is composed of a center radius arc flanked by two different sized half-round beads on the outer edge, a single bead with an attached radius edge fillet, and cyma recta positioned on the inside portion of the pattern. We have many profiles that would serve as a good matching drawer front for this profile; go back and input the desired size in the search boxes provided.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
