Cabinet Door Moulding 3-3/8"
Cabinet Door Moulding 3-3/8"

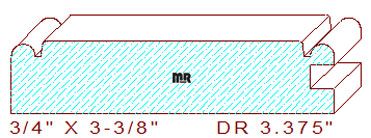

This double bead door rail moulding measures 3-3/8" wide by 3/4" thickness. The profile is composed of two recessed (1/32" for sanding) 1/4" wide half circles with a 1/16" wide sunk fillet attached, the matching drawer front to this design is DR-1.625"-2 in our catalog, alter the search parameters to 1.625 in both fields to view the profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
