Cabinet Door Moulding 3-1/2" - 13

Cabinet Door Moulding 3-1/2" - 13

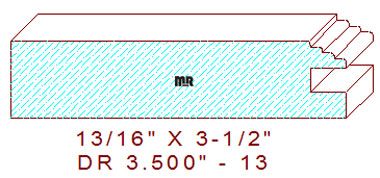

This Mitre Door Rail Moulding 3-1/2" - 13 measures 3.500" wide by .812" thickness, the profile section measures about 3/8" wide and is composed of a series of three cascading radius edge steps that measure 1/8" wide by 1/16" deep, the maximum width you could mill with this knife design is 3.875" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
