Cabinet Door Moulding 3-1/2" - 15

Cabinet Door Moulding 3-1/2" - 15

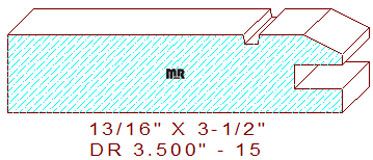

This mitered cabinet door rail moulding 3-1/2" - 15 measures 3.500" wide by .812" thickness. The profile portion dimension is 1-1/32" wide, which is composed of a 5/32" wide sunk fillet that divides the fillet surfaces on the top with a beveled edge positioned above the dado for the door panel.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
