Cabinet Door Moulding 3-1/2" - 6

Cabinet Door Moulding 3-1/2" - 6

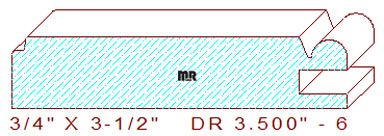

This creative cabinet door rail molding measures 3-1/2" wide by 3/4" thickness, on one side of the profile portion, measures 1/2" wide, composed of a 3/8" wide recessed bead (.031" to allow for sanding) and a 1/8" wide chamfer. The opposite side of the pattern has a simple 1/8" wide by 9/64" deep (1/64" left for sanding the face) rabbet with eased edges to reduce labor cost during the finishing process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
