Cabinet Door Moulding 4" - 5

Cabinet Door Moulding 4" - 5

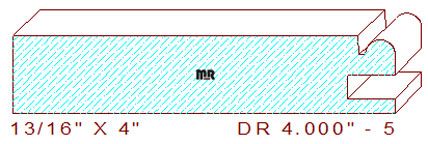

This cabinet door rail moulding 4" - 5 measures 4" wide by 13/16" thickness, the profile section is 3/8" wide, the design consist of a 5/32" radius half-circle which is recessed .040" below the face to allow for sanding, a 1/16" wide quirk is attached, the remaining portion of the pattern is flat.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
