Fluted Moulding 3" - 13

Fluted Moulding 3" - 13

Fluted Moulding 3" - 13

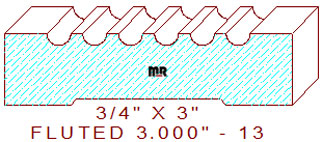

This intricate fluted casing moulding 3" - 13 measures 3.000" wide by .750" thickness, allowing the detail to be milled from four quarter lumber. The symmetrical design is comprised of two 7/16" wide horizontal line segments on the outer edges, joined to six 1/4" wide concave semicircles that are divided by 1/8" wide fillets in the center. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .125" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
