Fluted Moulding 3" - 15

Fluted Moulding 3" - 15

Fluted Moulding 3" - 15

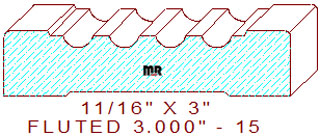

This recessed fluted casing moulding 3" - 15 measures 3.000" wide by .687" thickness, the detail will require four quarter lumber for milling on a industrial style molder. The custom symmetrical profile is composed of four 5/16" wide concave semicircles divided by 11/64" wide fillets in the center, flanked by a 1/8" wide by 3/64" deep notch that transitions upward to a 29/64" wide line segment with 1/16" radius edges on each side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .196" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
