Fluted Moulding 3-1/8"

Fluted Moulding 3-1/8"

Fluted Moulding 3-1/8"

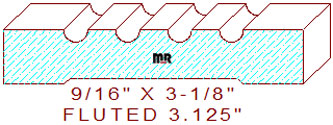

This fluted casing/pilaster molding 3-1/8" measures 3.125" wide by .562" thickness, permitting the detail to be machined out of four quarter lumber. The decorative profile is composed of four 1/4" wide concave half-round flutes divided by three 9/32" wide fillets in the center, the outer edges of the design have two 5/8" wide line segments. Try one of our many radius edges on the outside corners of the design, enter the size radius you would prefer to use in the search boxes provided.

Mirror Reflections has over thirty years experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.125" / Depth of Cut = .125" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
