Fluted Casing Moulding 3-1/4"

Fluted Casing Moulding 3-1/4"

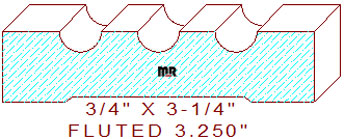

This basic fluted casing moulding 3-1/4" measures 3.250" wide by .750" thickness, allowing the detail to be machined from four quarter lumber. The standard symmetrical profile has three 7/16" wide concave semicircles in the center, separated by two 3/8" wide horizontal line segments in the middle and a 19/32" wide fillet on each side edge of the design. The edges were intentionally left sharp so any of our radius edges could be milled from the left and right cutter heads on the molder, just enter the specific size radius in the search boxes provided. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Need some supplies for your moulder? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and tool grinding room.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .219" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
