Fluted Moulding 3-1/4" - 10

Fluted Moulding 3-1/4" - 10

Fluted Moulding 3-1/4" - 10

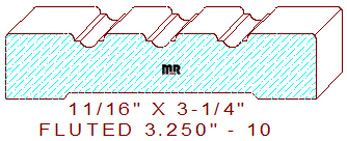

This decorative fluted casing moulding 3-1/4" - 10 measures 3.250" wide by .687" thickness, allowing the detail to be machined from four quarter lumber. The unique custom profile is composed of three 3/16" wide concave flutes in the center, flanked by two 1/16" wide line segments and two 7/16" wide raised fillets with 1/16" eased edges, the sides consists of a 23/32" wide line also with a 1/16" eased edge. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .219" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
