Fluted Moulding 3-1/4" - 11

Fluted Moulding 3-1/4" - 11

Fluted Moulding 3-1/4" - 11

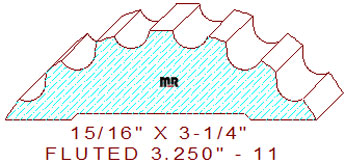

This custom fluted half round moulding 3-1/4" - 11 measures 3.250" wide by .937" thickness, necessitating the use of five quarter lumber for milling on an industrial molder. The beautiful semicircular profile is composed of six strategically placed 3/16" radius flutes within a 1-7/8" radius arc along the entire width of the pattern. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .937" (top knives) & .062" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
