Fluted Moulding 3-1/4" - 5

Fluted Moulding 3-1/4" - 5

Fluted Moulding 3-1/4" - 5

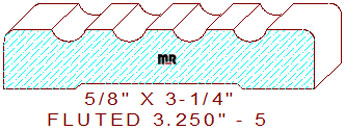

This beautiful fluted door casing/pilaster molding 3-1/4" - 5 measure 3.250" width by .625" thickness permitting the use of four quarter lumber for machining on an industrial-grade molder. The symmetrical profile contains four 23/64" wide concave semicircles, flanked by three 9/32" broad fillets on the center with a 1/2" fillet with a 1/8" rounded corners on each side of the design.

Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .316" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
