Fluted Moulding 3-1/4" - 9

Fluted Moulding 3-1/4" - 9

Fluted Moulding 3-1/4" - 9

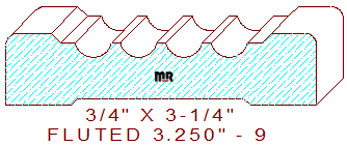

This creative fluted casing/pilaster molding 3-1/4" - 9 measure 3.250" width by .750" thickness, permitting the use of four quarter lumber for milling on a commercial molder. The distinguished profile contains four recessed 3/8" wide concave semicircles divided by three 3/32" wide line segments in the center. The outside flutes connect to a 5/32" horizontal line merged with a 7/64" upsloping bevel joined to a 15/32" line segment with a 1/8" rolled edge on the outside corners of the design.

Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .312" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
