Fluted/Reeded Moulding 3-3/8" - 3
Fluted/Reeded Moulding 3-3/8" - 3

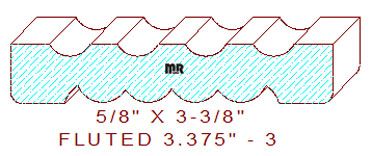

This fluted/reeded door casing moulding 3-3/8" - 3 measures 3.375" wide by .625" thickness. The unique profile retains two different style designs for increased functionality during installation. The fluted side comprises four .431" wide concave flutes divided by .281" wide fillets in the center and .406" wide fillets on each side edge of the pattern. The design's reeded side composes four half-round beads flanked by a cove that transitions to a 9/16" wide radius edge fillet on each side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
