Fluted Moulding 3-7/16"

Fluted Moulding 3-7/16"

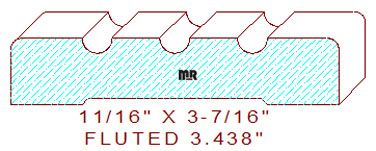

This Fluted Casing Moulding 3-7/16" measures 3.437" wide by .687" thickness. The profile is comprised of three centered flutes with both sides retaining a 1/8" radius edge, the layout of the flutes is 29/32" on center on sides and 13/16" on center in the middle.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
