Fluted Moulding 3-1/2" - 10

Fluted Moulding 3-1/2" - 10

Fluted Moulding 3-1/2" - 10

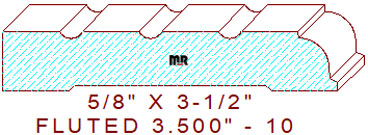

This fluted baseboard moulding 3-1/2" - 10 measures 3.500" wide by .625" thickness. The semicircular profile is composed of three 15/64" wide by 5/64" deep flutes that are divided by four 19/32" wide line segments on the face side, connected to a 1/16" vertical step that joins to a 5/16" quarter round arc with a small chamfer that leaves a 3/32" thickness dimension on the thin side of the design. You can also use this pattern as a casing buildup by adding one of our many capping profiles, here is just one of many designs you may want to review and consider, backband 1.250" - 5.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .562" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
