Fluted Casing Moulding 3-1/2" - 2

Fluted Casing Moulding 3-1/2" - 2

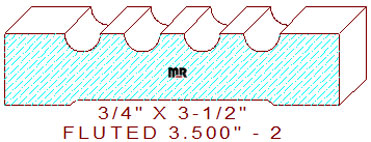

This beautiful fluted casing moulding 3-1/2" - 2 measures 3.500" wide by .750" thickness. The symmetrical profile is composed of four 3/8" wide by 3/16" deep half round circles divided by three 1/4" wide line segments in the center, the two side dimensions are 5/8" wide each. The edges were intentionally left square and sharp, you may want to review and consider easing the top edge of the detail with any of our radius edges, simply enter the size round-over you want to view in the boxes provided, here's one we think would work nicely for this pattern, radius .062". Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Would you like to reduce the amount of time it takes to set up the moulder for a milling production run? Perhaps calibrating the moulder spindles axially and radially will substantially decrease setup time while simultaneously increasing production.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .188" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
