Fluted Casing Moulding 4" - 1

Fluted Casing Moulding 4" - 1

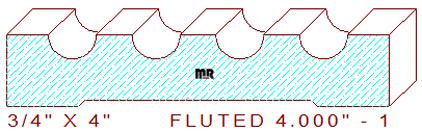

This fluted casing moulding 4" - 1 measures 4.000" wide by .750" thickness, allowing the pattern to be milled from four quarter lumber. The symmetrical profile is composed of four 1/2" wide by 1/4" deep concave semicircles divided by three 3/8" wide line segments in the center and a 7/16" wide horizontal line on each side. The edges were intentionally left square to utilize one of our many radius edges located in our moulding catalog, here is just one of the many possibilities you may want to review and consider, radius .062". Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Whether you have a Weinig R 1000 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .250" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
