Fluted Moulding 4" - 11

Fluted Moulding 4" - 11

Fluted Moulding 4" - 11

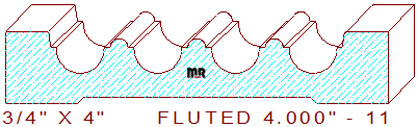

This decorative fluted casing moulding 4" - 11 measures 4.000" wide by .750" thickness, allowing the detail to be machined from four quarter lumber. The unique symmetrical profile is composed of four 1/2" wide by 17/64" deep concave half round circles, joined to three 3/16" wide beads flanked by 1/16" wide line segments in the center, connected to a 29/64" wide by 11/64" high raised fillet on each side edge of the pattern. The side edges were intentionally left square for use of any of our radius edge profiles. Glance at our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a design to match your needs.

All cad (computer aided design) files contain important moulder setup and grinding information all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's marvelous architectural details, one astonishingly gorgeous profile at a time.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .437" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
