Fluted Moulding 4" - 4

Fluted Moulding 4" - 4

Fluted Moulding 4" - 4

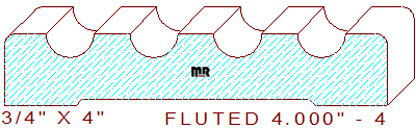

This standard fluted casing moulding 4" - 4 measures 4.000" wide by .750" thickness. The customary profile is composed of four 1/2" wide by 1/4" deep concave semicircles divided by three 3/8" wide line segments in the center, flanked by a 7/16" wide horizontal line with a 1/8" round over on each side edge of the pattern. Take a look at our backout category for an appropriate relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, or, simply connect our profile catalog to your website, this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on molding design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .278" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
