Fluted Moulding 4-3/8" - 1
Fluted Moulding 4-3/8" - 1

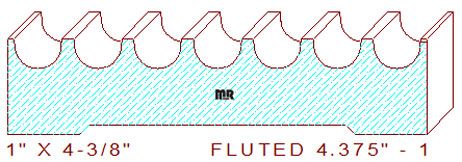

This fluted casing moulding 4-3/8" - 1 measure 4.375" wide by 1.000" thickness. The symmetrical design comprises seven evenly spaced 1/2" wide by 5/16" deep concave flutes that get divided by 1/8" wide fillets in the center and 1/16" wide fillets on each side, keeping the pattern's spacing consistent when butted to another piece.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
