Fluted Moulding 5-1/2" - 4

Fluted Moulding 5-1/2" - 4

Fluted Moulding 5-1/2" - 4

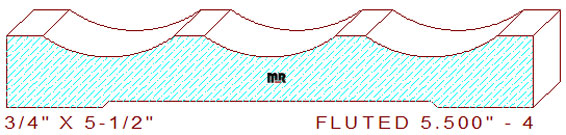

This fluted pilaster molding 5-1/2" - 4 measures 5.500" wide by .750" thickness, requiring the use of a 5-3/4" wide blank of four-quarter lumber for milling on an industrial molder. The grooved profile contains three 1-3/8" wide flutes divided by two 5/16" broad fillets in the center, with a 3/8" sharp flat edge on each side of the design.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years experience in woodworking and a former Weinig molder/grinder field service technician. From just an idea in one's mind to reality in their beautiful home, our custom profiles reflect your imagination's creative style. Let us help you complement the architectural decor of any room with any one or more of our attractive molding patterns.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.500" / Depth of Cut = .218" (top knives) & .062" (bottom blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
