Fluted Moulding 5-1/2" - 6

Fluted Moulding 5-1/2" - 6

Fluted Moulding 5-1/2" - 6

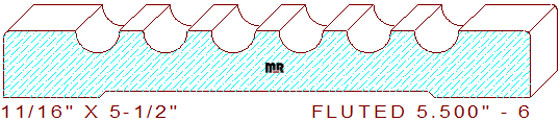

This beautiful fluted pilaster molding 5-1/2" - 6 measures 5.500" wide by .687" thickness, permitting the pattern to be machined out of four quarter lumber. The grooved symmetrical profile is composed of six 29/64" wide concave semicircles divided by five 1/4" wide line segments in the center, each side of the design measures 3/4" wide with a 1/16" radius edge that will aid in the finishing process.

Architects, interior designers, contractors, lumber mills and molding manufacturers have been utilizing our vast variety of molding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.500" / Depth of Cut = .226" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
