Fluted Moulding 8-9/16"

Fluted Moulding 8-9/16"

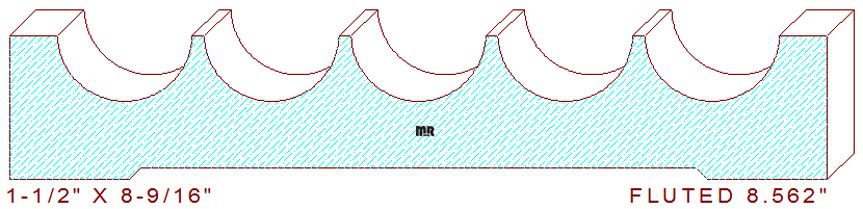

This fluted moulding measures 8-9/16" wide by 1-1/2" thickness; the design consists of five 45/64" radius coves separated by 1/8" wide fillet. The ends have a 1/2" fillet. The primary purpose of this moulding is for core samples from the earth; after drilling into the ground, they lay the dirt samples inside of this wood pattern and cap it with another piece of the same design; they secure it and send it to the lab for testing.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
