Handrail 2" - 13

Handrail 2" - 13

Handrail 2" - 13

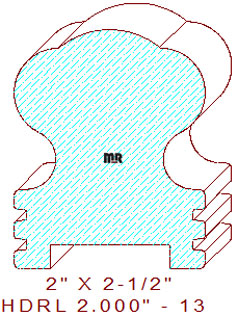

This beautiful handrail 2" - 13 measures 2.000" wide by 2.500" tall. Our version of this classic pattern has a 27/32" radius arc in the center flanked by two 15/32" radiuses that transition into the finger grip area on the sides. The lower section consists of three 3/64" tall by 1/8" wide raised fillets divided by two 1/8" tall sunk fillets. The bottom plow measures 1-1/4" wide by 1/4" deep, leaving 3/8" on each side edge of the design.

Let us assist you in shaping your home's astonishing architectural decor, one attractive profile at a time. Try one of our fancy base shoe moldings at the bottom of this pattern. Find an irresistible, compelling design by simply changing the width search parameters to any desired size in the search boxes provided.

The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.436
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.436
Top Cutter Head
Width: 2.000
Depth of Cut: 0.548
Bottom Cutter Head
Width: 2.000
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
$180.50
$180.50
Total:
$729.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
$191.50
$191.50
Total:
$777.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
$202.50
$202.50
Total:
$825.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
