Handrail 2" - 17
Handrail 2" - 17

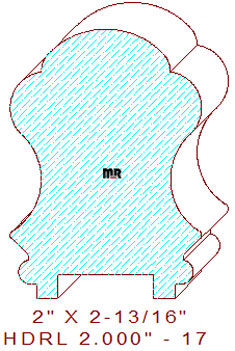

This beautiful 2" - 17 handrail measures 2.000" wide by 2.812" tall. The lovely profile comprises a three-tangent radius mushroom-shaped top, connected to a two-tangent radius French curve with a beveled edge that transitions into a small sunk fillet, joined to a 1/4" tall half-round bead and a 9/64" tall line segment with a 3/64" eased bottom edge. The dado for the spindles measures one-quarter inch deep by one inch wide. This CAD-generated dxf file contains three skillfully drafted template designs for producing knives for this creative handrail pattern.
Try one of our 125% concentration ultimate CBN grinding wheels. Finish grinding at 3000 rpm with a 20-degree back clearance angle will create a superior micro-edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant on a Weinig R960 profile grinder.
The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.812
Depth of Cut: 0.476
Left Cutter Head
Thickness: 2.812
Depth of Cut: 0.476
Top Cutter Head
Width: 2.000
Depth of Cut: 0.466
Bottom Cutter Head
Width: 2.000
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$229.22
$185.22
(Template not needed)
$187.00
$187.00
Total:
$788.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$243.47
$199.47
(Template not needed)
$198.00
$198.00
Total:
$838.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$264.84
$220.84
(Template not needed)
$214.50
$214.50
Total:
$914.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
