Handrail 2" - 27
Handrail 2" - 27

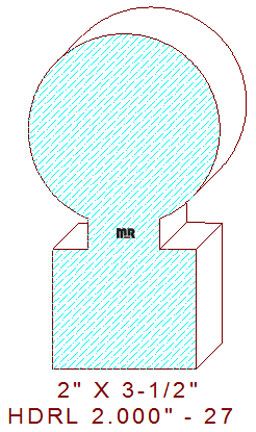

This handrail 2" - 27 measures 2.000" wide by 3.500" tall. The profile consists of a 2" wide full round in the top section for gripping with a recessed quirk in the center for fingertips, the remaining 1-1/4" of the detail is square.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.500
Depth of Cut: 0.625
Left Cutter Head
Thickness: 3.500
Depth of Cut: 0.625
Top Cutter Head
Width: 2.000
Depth of Cut: 0.703
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$264.00
$221.00
(Template not needed)
$197.00
Not Needed
Total:
$682.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$281.00
$238.00
(Template not needed)
$208.00
Not Needed
Total:
$727.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$306.50
$263.50
(Template not needed)
$224.50
Not Needed
Total:
$794.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
