Handrail 2" - 29

Handrail 2" - 29

Handrail 2" - 29

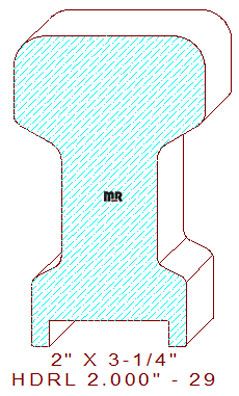

This handrail 2" - 29 measures 2.000" wide by 3.250" tall. The profile is comprised of a rectangular double eased edge top which tapers inward to a width of 1" wide in the center then flares outward to a width of 1-5/8" on the bottom. The dado/plow for the balusters measures 1-1/4" wide by 1/4" deep leaving 3/16" wide eased edge fillets on each side of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.250
Depth of Cut: 0.500
Left Cutter Head
Thickness: 3.250
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 2.000
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$243.00
$200.00
(Template not needed)
Not Needed
$180.50
Total:
$623.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$259.00
$216.00
(Template not needed)
Not Needed
$191.50
Total:
$666.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$275.00
$232.00
(Template not needed)
Not Needed
$202.50
Total:
$709.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
