Handrail 2-1/4" - 14
Handrail 2-1/4" - 14

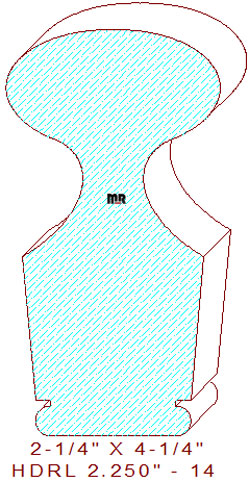

This unique handrail 2-1/4" - 14 measures 2.250" wide by 4.250" tall, permitting the pattern to be machined out of glued-up pieces of four, five, and six-quarter lumber. The striking profile comprises a three-tangent radius elliptical-shaped arc on top. The sides retain a 15/32" concave arc tangent to a 1-1/2" curvature creating the gripping area in the center, the edge taper inward by 5.123 degrees joined to a tiny sunk fillet and a 5/16" tall bullnose on the bottom sides.
Do you need steel bars for knives or other tool room supplies? Choose any of our quality high-speed knife steel or premium carbide; we generally can ship these items the same day. We are a Weinig authorized tooling agent. We offer some of the highest quality cutter heads and tooling supplies available in our industry.
The active combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.463
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.802
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.802
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.00
Not Needed
$323.00
$280.00
(Template not needed)
Total:
$802.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$211.00
Not Needed
$343.00
$300.00
(Template not needed)
Total:
$854.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$229.00
Not Needed
$373.00
$330.00
(Template not needed)
Total:
$932.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
