Handrail 2-1/4" - 27

Handrail 2-1/4" - 27

Handrail 2-1/4" - 27

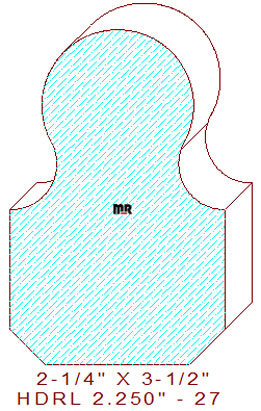

This modern handrail 2-1/4" - 27, measures 2.250" width by 3.500" tall, necessitating the use of glued-up pieces of four, five, or six-quarter lumber for milling on an industrial-grade molder. The hefty profile contains a 1-19/32" wide bulb shaped top, tangent to a 41/64" concave semicircular arc creating the finger grip area on the sides. The lower portion of the pattern consists of a 1-1/4" high vertical line segment with a 3/8" by 3/8" forty-five-degree chamfer, leaving a 1-1/2" width dimension on the bottom of the design.

We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding and milling all our designs. Ever wonder why molding cutters break from time to time? Read our commentary on knife breakage for possible causes and solutions to this phenomenon.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.250
Depth of Cut: 0.948
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.583
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.583

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.00
Not Needed
$255.50
$212.50
(Template not needed)
Total:
$673.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$217.00
Not Needed
$272.50
$229.50
(Template not needed)
Total:
$719.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$229.00
Not Needed
$289.50
$246.50
(Template not needed)
Total:
$765.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
