Handrail 2-1/4" - 31
Handrail 2-1/4" - 31

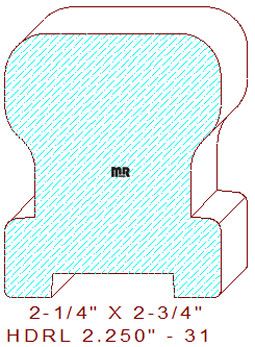

This modern handrail 2-1/4" - 31 measures 2.250" wide by 2.750" tall. The profile is comprised of a 7/16" radius edge top that transitions into a two-tangent 7/16" radius on the sides, creating a smooth gripping area. The bottom sides of the pattern return to full width with a radiused edge fillet that softens the detail edges. The bottom retains a 1-1/4" wide by 1/4" deep centered dado or plow for inserting the balusters or balustrade.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.625
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.625
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 2.250
Depth of Cut: 0.250
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$225.00
$182.00
(Template not needed)
Not Needed
$199.00
Total:
$606.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$239.00
$196.00
(Template not needed)
Not Needed
$211.00
Total:
$646.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$260.00
$217.00
(Template not needed)
Not Needed
$229.00
Total:
$706.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
