Handrail 2-1/4" - 32

Handrail 2-1/4" - 32

Handrail 2-1/4" - 32

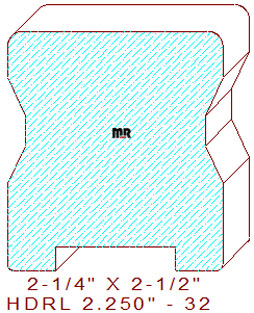

This modern 2-1/4" - 32 handrail measures 2.250" wide by 2.500" thickness, enabling the pattern to be machined out of glued-up pieces of four and five-quarter lumber. The contemporary profile is comprised of 2-1/4" wide flat top with 5/32" eased edges, the sides are composed of a twenty-five-degree inward bevel 7/8" from the top, joined to a 5/16" tall sunk fillet that serves as the finger grip area, joined to an outward twenty-five-degree angled line that connects to a 29/32" tall vertical line segment with 3/64" eased edges on the lower sides, the dado for the baluster measures 1-1/4" wide by 1/4" deep. The knife design allows any size width to be obtained by adjusting the machine's left cutter head radial movement.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.312
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.312
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 2.250
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
Not Needed
$193.00
Total:
$561.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
Not Needed
$205.00
Total:
$599.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
Not Needed
$217.00
Total:
$637.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
