Handrail 2-1/4" - 46

Handrail 2-1/4" - 46

Handrail 2-1/4" - 46

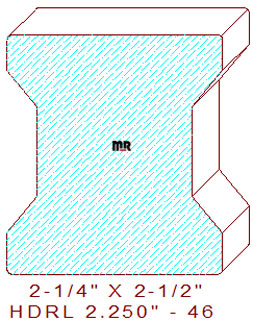

This stylish 2-1/4" - 46 handrail measures 2.250" wide by 2.500" tall. The asymmetrical hourglass profile is comprised of a 3/8" thickness top with 1/16" eased edges, connected to a 1-11/16" tall by 5/16" deep finger grip area consisting of two bidirectional forty-degree bevels with a 15/16" flat section in the middle, the bottom is similar to the top but with a 7/16" thickness dimension, also with 1/16" radius edges. The molding blades are designed for milling from both the right and left cutter heads; this enables width sizes to any desired size within the parameters of the machinery used.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.313
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.313
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
Not Needed
Not Needed
Total:
$368.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
Not Needed
Not Needed
Total:
$394.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
Not Needed
Not Needed
Total:
$420.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
