Handrail 2-1/4" - 47

Handrail 2-1/4" - 47

Handrail 2-1/4" - 47

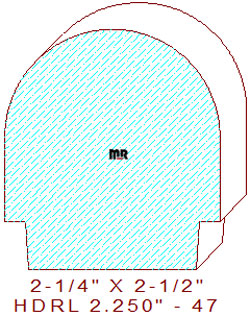

This domed-shaped handrail 2-1/4" - 47 measures 2.250" width by 2.500" thickness, necessitating the use of a 2-1/2" wide blank of glued up four or five-quarter lumber for machining on an industrial-grade molder. The simplistic profile contains a 1-1/8" radius bullnose top. The bottom of the pattern consists of a 1/4" wide by 1/2" tall notch on both side edges of the design.

Do you ever wonder why certain wood species have tear-out problems during milling? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save a substantial amount of money when investing in this style of molder tooling.

Before beginning knife grinding procedures, you may want to read our article on knife cutting circles to see if you can safely cut this pattern on your machinery, this pattern might have issues on specific models of molders. For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.250" / Depth of Cut = 1.281" (top knives) & .500" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
