Handrail 2-1/4" - 7

Handrail 2-1/4" - 7

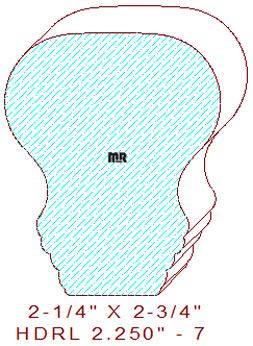

This handrail measures 2-1/4" wide by 2-3/4" thick. The profile design resembles a light bulb composed of a pear-shaped top with a slender middle forming a user-friendly finger-gripping area. The remaining portion of the detail consists of a series of cascading radiuses.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.750
Depth of Cut: 0.855
Left Cutter Head
Thickness: 2.750
Depth of Cut: 0.855
Top Cutter Head
Width: 2.250
Depth of Cut: 0.190
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$239.00
$196.00
(Template not needed)
$199.00
Not Needed
Total:
$634.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$253.00
$210.00
(Template not needed)
$211.00
Not Needed
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$274.00
$231.00
(Template not needed)
$229.00
Not Needed
Total:
$734.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
