Handrail 2-5/16" - 2

Handrail 2-5/16" - 2

Handrail 2-5/16" - 2

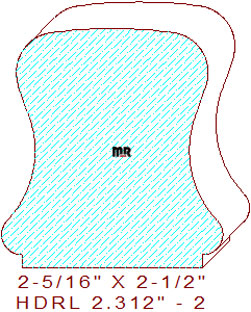

This popular 2-5/16" - 2 handrail measures 2.312" wide by 2.500" tall, allowing the detail to be milled out of glued-up pieces of four or five-quarter lumber. The traditional profile consists of very slight 4-51/64" radius semicircular arc on the top center, flanked by two 27/64" convex arcs on the right & left sides that transition into a 1-1/16" concave semicircle that forms the grip area in the center, tangent to a 7/32" convex arc with a 1/8" tall vertical fillet, leaving a 1-7/8" width dimension on the bottom of the railing.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.625
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.625
Top Cutter Head
Width: 2.312
Depth of Cut: 0.102
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
$196.10
Not Needed
Total:
$564.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
$208.35
Not Needed
Total:
$602.35
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
$220.60
Not Needed
Total:
$640.60
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
