Handrail Moulding 2-5/16" - 4

Handrail Moulding 2-5/16" - 4

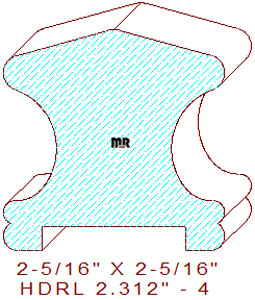

This beautifully elegant handrail moulding 2-5/16" - 4 measures 2.312" wide by 2.312" tall, the rough blank of wood for milling will have to be glued up prior to the machining process. The custom symmetrical profile is composed of a bidirectional fifteen degree beveled top with 3/16" radius edges, the sides have deep a cavetto which creates a smooth sturdy gripping area while ascending or descending a flight of stairs, the lower portion of the rail retains a 1/8" and a 5/32" radius round beads which provides a beautiful aesthetic shape. The bottom plow is 1-1/2" wide by 1/4" deep for balusters or a balustrade.

Mirror Reflections provides the cut steel size on all their molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of them caring about the overall success of your business.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.312" / Depth of Cut = .338" (top knives) & .250" (bottom cutters.)

Thickness = 2.312" / Depth of Cut = .555" (right blades) & .555" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
