Handrail 2-5/16" - 7

Handrail 2-5/16" - 7

Handrail 2-5/16" - 7

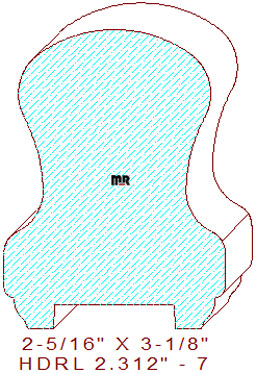

This sturdy 2-5/16" - 7 handrail measures 2.312" width by 3.125" thickness, necessitating the use of glued-up pieces of four, five, or six-quarter lumber for milling on an industrial molder. The beautiful artistic profile contains a 1-23/64" radius semicircle making the width slightly over two inches wide on top. The symmetrical sides consist of a 33/64" convex arc tangent to a 1-23/32" radius concave semicircle connected to a 15/32" cove, creating the finger grip area in the center. Attached to a 5/8" tall vertical line segment with rounded corners and a small ogee on the lower edges of the design. The bottom retains a 1-1/4" wide by 1/4" deep dado for balusters, leaving a 9/32" flat section on each side edge.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 3.125
Depth of Cut: 0.500
Left Cutter Head
Thickness: 3.125
Depth of Cut: 0.500
Top Cutter Head
Width: 2.312
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
$196.10
Not Needed
Total:
$626.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$252.25
$209.25
(Template not needed)
$208.35
Not Needed
Total:
$669.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$267.75
$224.75
(Template not needed)
$220.60
Not Needed
Total:
$713.10
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
