6910 Handrail 2-5/16" - 8

6910 Handrail 2-5/16" - 8

6910 Handrail 2-5/16" - 8

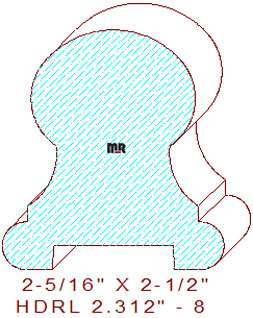

This 2-5/16" - 8 handrail measures 2.312" wide by 2.500" tall. The sleek profile has subtle differences from other 6109 handrails which are in height and width. The detail is comprised of 1-23/32" wide round top, connected to 21/32" radius cove on the side which create a nice grip area, joined to a 5/32" tall vertical line with a 1/4" radius half round bead on the bottom edges. The dado on the bottom for the balusters or balustrade measures 1-1/4" wide by 1/4" deep. The other version we have of this 6109 pattern is milled at 2-3/8" wide by 2-7/8" tall, it is located here for your review and consideration.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.564
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.564
Top Cutter Head
Width: 2.312
Depth of Cut: 0.472
Bottom Cutter Head
Width: 2.312
Depth of Cut: 0.250

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
$196.10
$196.10
Total:
$760.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.50
$175.50
(Template not needed)
$208.35
$208.35
Total:
$810.70
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$231.50
$188.50
(Template not needed)
$220.60
$220.60
Total:
$861.19
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
