Handrail 2-3/8" - 10

Handrail 2-3/8" - 10

Handrail 2-3/8" - 10

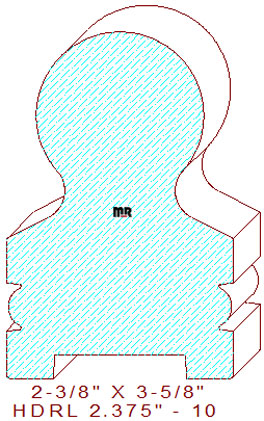

This distinguished handrail 2-3/8" - 10, measures 2.375" width by 3.625" tall, requiring the use of glued-up pieces of five, six or eight quarter lumber for milling on an industrial-grade molder. The decorative profile contains a 1-3/4" broad round top, connected to a 5/16" radius concave sides forming a comfortable finger grip with tangent angled sides that flare out to the full 2-3/8" width. The lower portion retains a fancy recessed half bead flanked by vertical line segment with 3/64" eased edges, the bottom of the design maintains a 1-3/8" wide by 1/4" deep dado for balusters.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative handrail pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job a lot easier the production process.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.375" / Depth of Cut = .625" (top knives) & .250" (bottom cutters).

Thickness = 3.625" / Depth of Cut = .610" (right blades) & .610" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
