Handrail 2-3/8" - 13
Handrail 2-3/8" - 13

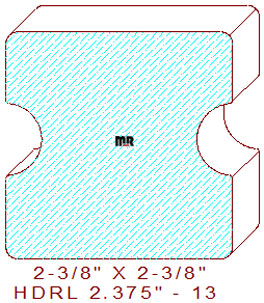

This modern 2-3/8" - 13 handrail measures 2.375" wide by 2.375" thickness, permitting the detail to be machined out of glued-up four, five, or six-quarter lumber. The contemporary profile is milled from both the right & left cutter heads. This enables the width to be produced to any desired size within the parameters of the machinery used to cut the pattern. The detail is comprised of the three-quarter-inch vertical line segment with a 1/8" eased edge on the top sides, connected to a 3/4" wide concave finger gripping area in the middle, joined to a 7/8" tall vertical line with 1/8" round-overs on the bottom sides of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.375
Depth of Cut: 0.375
Left Cutter Head
Thickness: 2.375
Depth of Cut: 0.375
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$205.50
$162.50
(Template not needed)
Not Needed
Not Needed
Total:
$368.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$218.00
$175.00
(Template not needed)
Not Needed
Not Needed
Total:
$393.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$236.75
$193.75
(Template not needed)
Not Needed
Not Needed
Total:
$430.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
