6B10 Handrail 2-3/8" - 16
6B10 Handrail 2-3/8" - 16

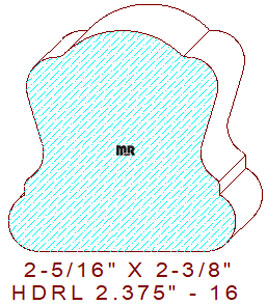

This 6B10 handrail 2-3/8" - 16 measures 2.375" wide by 2.312" tall. Our graceful pattern design comprises a 7/8" radius arc on top with a dimension of 2" wide. The sides consist of two 5/16" radiuses connected by a tangent beveled line, which creates a smooth gripping area on the railing. The bottom of the pattern is 2-3/8" wide, which enables a wide variety of different-size plows for balusters or mounting hardware to be used.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.312
Depth of Cut: 0.552
Left Cutter Head
Thickness: 2.312
Depth of Cut: 0.552
Top Cutter Head
Width: 2.375
Depth of Cut: 0.273
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$202.22
$159.22
(Template not needed)
$205.50
Not Needed
Total:
$566.95
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$214.47
$171.47
(Template not needed)
$218.00
Not Needed
Total:
$603.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$232.84
$189.84
(Template not needed)
$236.75
Not Needed
Total:
$659.44
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
