Handrail 2-3/8" - 2

Handrail 2-3/8" - 2

Handrail 2-3/8" - 2

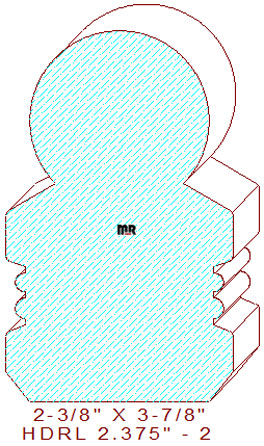

This distinguished handrail 2-3/8" - 2, measures 2.375" width by 3.875" tall. The detail will require the use of glued-up pieces of four, five, six, or eight-quarter lumber for milling on an industrial-grade molder. The creative symmetrical profile contains a 1-7/8" partial round top, joined to beveled lines that flare out to full width on the sides. The lower portion of the pattern consists of two decorative half-circle beads separated by 1/16" broad sunk fillets in the center, with a 5/16" tall by 1/4" full beveled edge on the bottom of the design.

Mirror Reflections has over thirty-five years’ experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 2.375" / Depth of Cut = .688" (top knives).

Thickness = 3.875" / Depth of Cut = .518" (right blades) & .518" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
