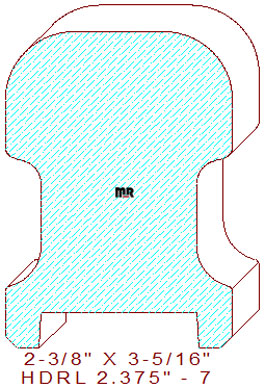

This modern 2-3/8" - 7 handrail measures 2.375" width by 3.312" tall, requiring the use of glued-up pieces of five, six, or eight-quarter lumber for milling on a commercial-grade molder. The symmetrical contemporary profile contains a flat top with 23/32" rounded corners, the sides retain a 9/16" tall vertical fillet with a 1/8" rolled edge that joins to a 1-3/8" broad by 3/8" deep finger grip area with a 1/4" concave semicircle on top and a 7/16" cove below. Attached to a 1/2" high vertical line segment with a 1/8" by 1/8" chamfer on the lower corners, the bottom of the design maintains a 1-5/8" wide by 3/8" deep dado for balusters.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 3.312
Depth of Cut: 0.375
Left Cutter Head
Thickness: 3.312
Depth of Cut: 0.375
Top Cutter Head
Width: 2.375
Depth of Cut: 0.906
Bottom Cutter Head
Width: 2.375
Depth of Cut: 0.375
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$254.22
$211.22
(Template not needed)
$218.00
$205.50
Total:
$888.95
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$270.47
$227.47
(Template not needed)
$230.50
$218.00
Total:
$946.44
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$294.84
$251.84
(Template not needed)
$249.25
$236.75
Total:
$1032.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
